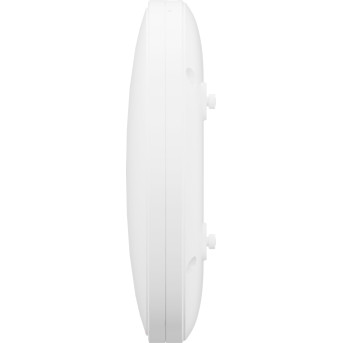

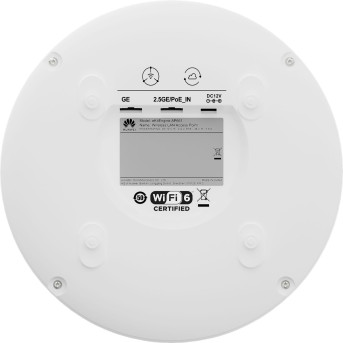

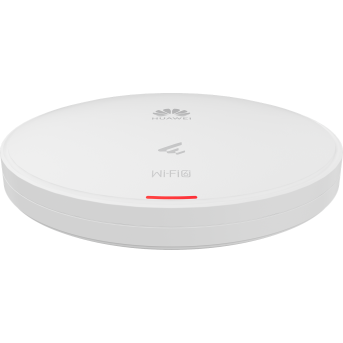

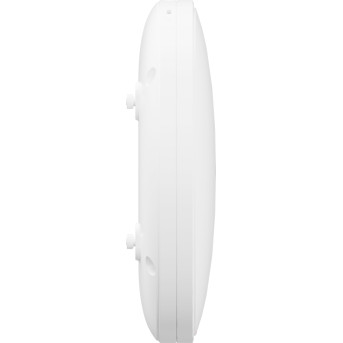

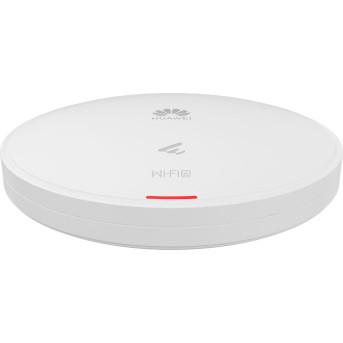

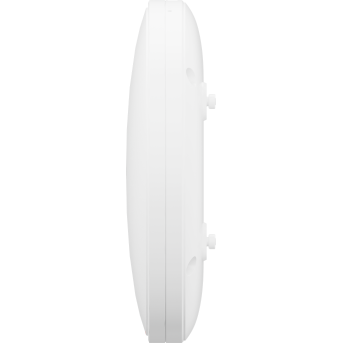

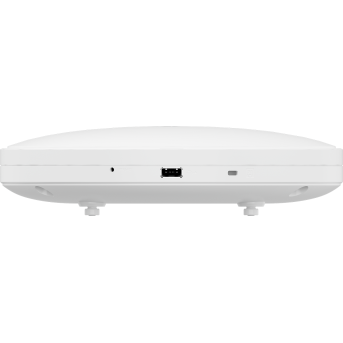

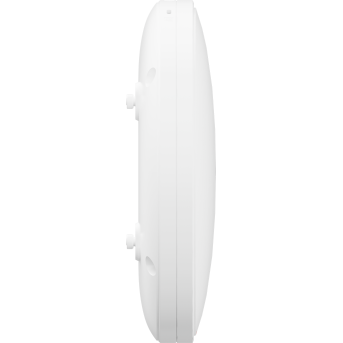

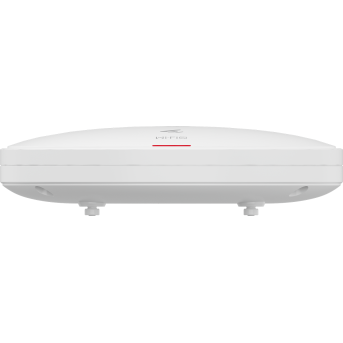

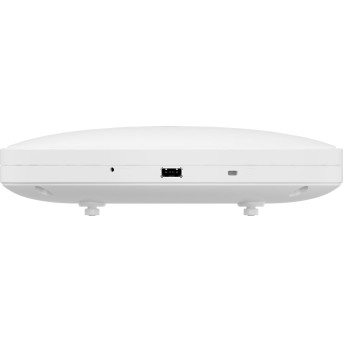

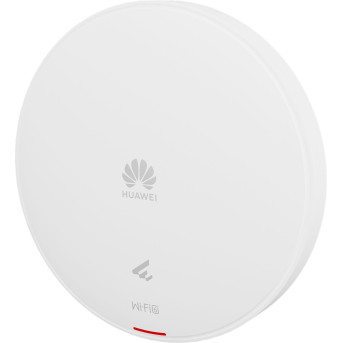

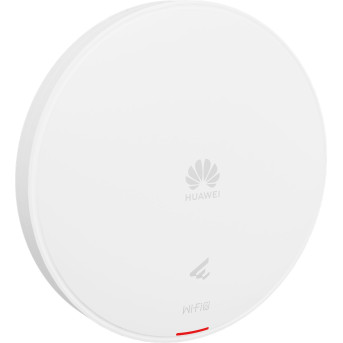

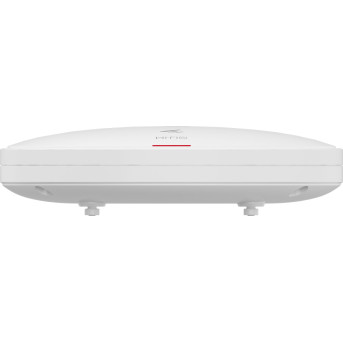

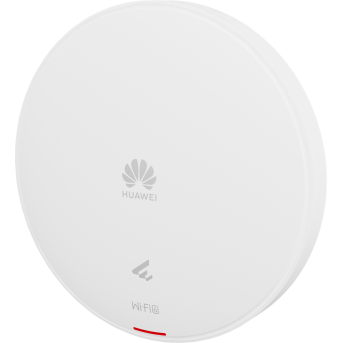

Точка доступа HUAWEI AP661 (02355VFC)
Можем доставить к Вам
Доступен самовывоз
112 830 ₸
Похожие товары
113 920 ₸
114 460 ₸
117 150 ₸
121 590 ₸
100 230 ₸
94 210 ₸
132 540 ₸
144 040 ₸
- Описание
- Отзывы (0)
| Basic Information | |
| Part Number | 02355VFC |
| Model | AP661 |
| Description | AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE) |
| First supported version | V200R023C10 |
| Technical Specifications | |
| Installation Type | Wall,Ceiling,T-Rail |
| Diameter [mm] | 220 mm |
| Height [mm] | 50 mm |
| Weight without packaging [kg(lb)] | 1.08 kg (2.38 lb) |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Maximum power consumption [W] | 21.2 (excluding USB), 802.3at/af power supply |
| Power supply mode | DC adapter,PoE |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Rated input voltage [V] | 12 V |
| 802.3at power supply description | No function is limited. |
| DC power supply description | No function is limited. |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2x2) + 5 GHz (1x1, high band) + 5 GHz (1x1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio). Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable. Other ports: The USB port is unavailable. |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Antenna gain [dBi] | 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power [dBm] | 2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm |
| Radio number | 3 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz) Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz) |
| Radio interface | Built-in smart antennas |
| Operating frequency band | 2.4GHz,5GHz |
| Storage | NAND Flash 512 MB |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| MTBF [year] | 96 |
| MTTR [hour] | 0.5 |
| USB | USB 2.0 |
| Console port | BLE console |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Service port surge protection [kV] | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Ground | floating ground |
| BLE | BLE5.2 |
| 3G/LTE filte (ACC) | Supported |
| Model | 319394 |
| USB порты | есть |
| Wi-Fi | 802.11ax |
| Артикул | 02355VFC |
| Бренд | Huawei |
| Вес, кг | 1.08 |
| Гарантия,месяцев | 12 |
| Количество портов USB 2.0 | 1 |
| Краткое описание | Точка доступа HUAWEI AP661 Wi-Fi 6 indoor Triple-Radio AX6600 (2.4/5/5 GHz, 2x2/2x2/4x4 MIMO, 1*2.5GE PoE+/1*GE RJ45) |
| Наличие | в наличии |
| Размеры без упаковки, мм | 220 x 220 x 50 |
| Сетевой LAN порт Ethernet RJ45 | 2 |
| Скорость передачи портов | 1x2500 Мбит/с + 1x1000 Мбит/с |
| Цвет | белый |
